Products

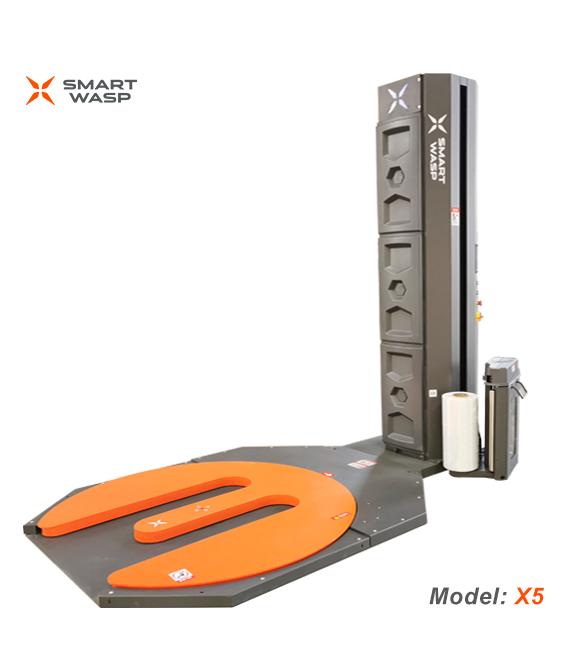

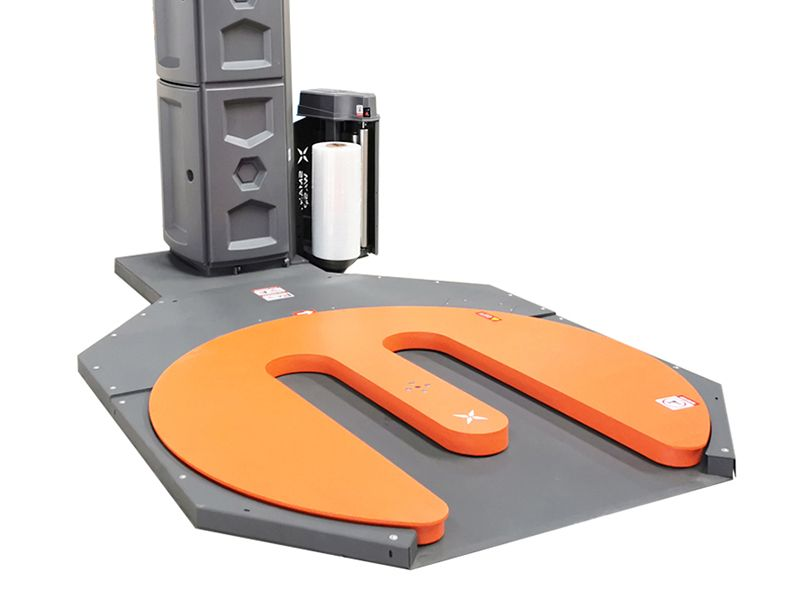

E Type Turntable Stretch

Compared with other turntable pallet wrapping machines, our turntable wrapping machine takes into account the convenience of forklifts in transporting items. E-type pallet wrapping turntables fit the shape of forklifts, making it easy for forklift worker and wrappers to operating, reducing labor costs and increasing production efficiency.

Muti-layer Function

This stretch wapper function can set different wrapping circles and wrapping force at any height that you want and maximum we can set 9 layers for pallet. Normally Stretch Wrapping Machine's wrapping force from bottom to top is the same, and it can not stop during wrapping and achieve reinforce wrapping function. Such function completely avoids these problems.

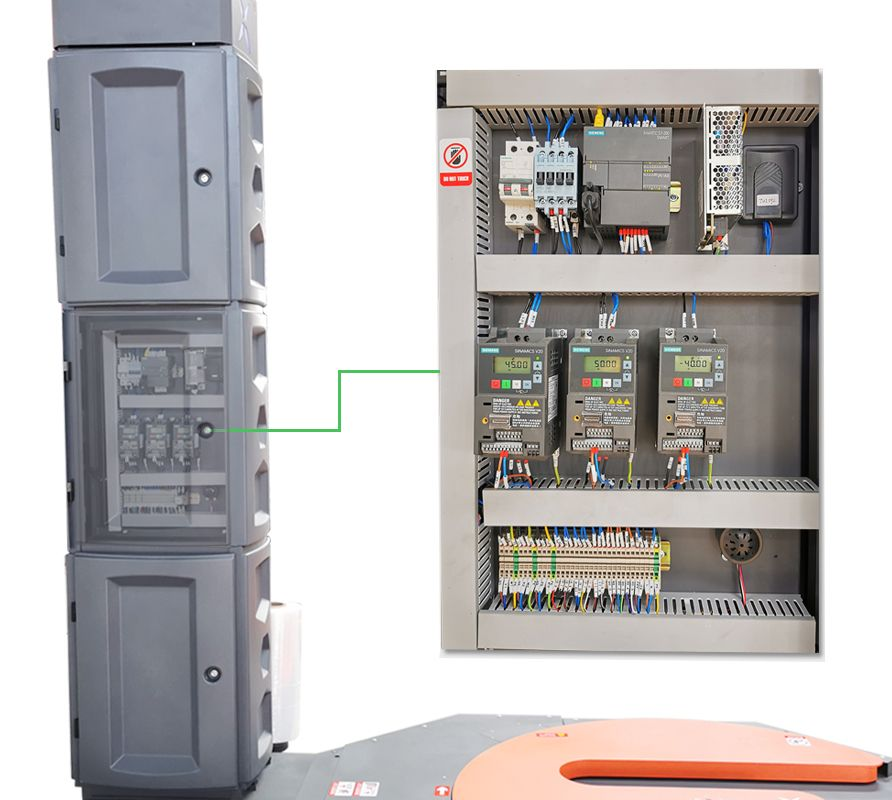

Better Spare Parts

SIEMENS PLC

SICK proximity switch

AUTONICS photoelectric switch

WEIDMULLER terminal block

SIEMENS Inverter

OMRON 24DC supply

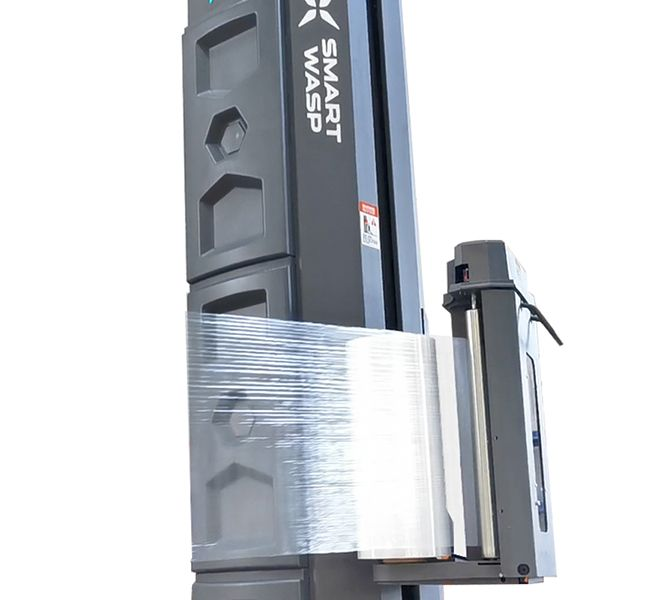

Saving Film Consumption

The pre-stretch feature in the turntable pallet wrapping machine maximizes the amount of goods you can wrap while greatly reducing film waste. Pre-stretch wrappers utilize multiple rubber rolls located on a carriage that rotates the rolls at two different speeds as the tray rotates on a turntable. When the wrapping cycle begins, the film in contact with the rollers is stretched to 380% of its original length. This dramatically reduces the amount of material required to wrap a shipment.

1. With pre-stretch roller, maximum up to 380% pre-stretch rate.

2. Maximize the value of each meter of stretch film

3. Standard constant releasing film

4. Fixed-point wrapping and quantitative use film

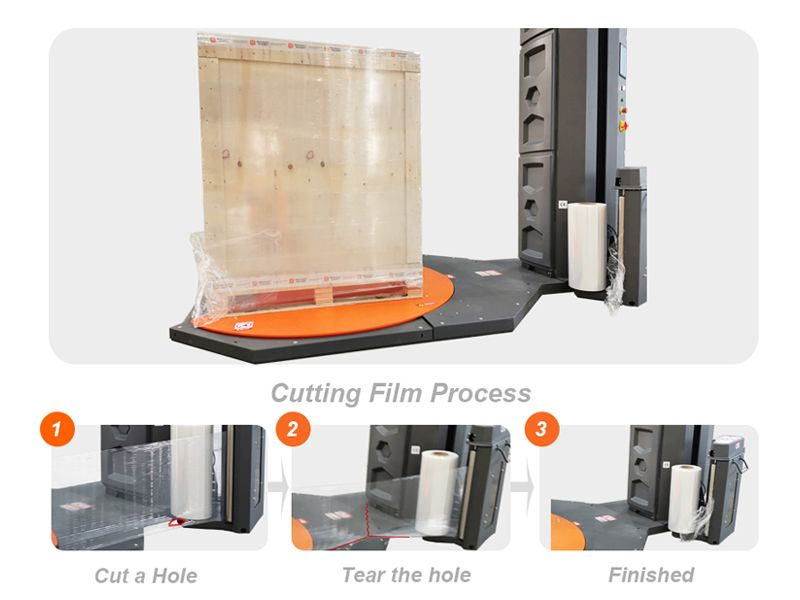

Automatic Cut Film

1. The blade in the film carriage will cut a small hole in the film.

2. As the Turntable Pallet Wrapper runs, the hole will be pulled and torn.

3. The film is pulled off and attached to the pallet. The machine will stop, waiting for the next operation.

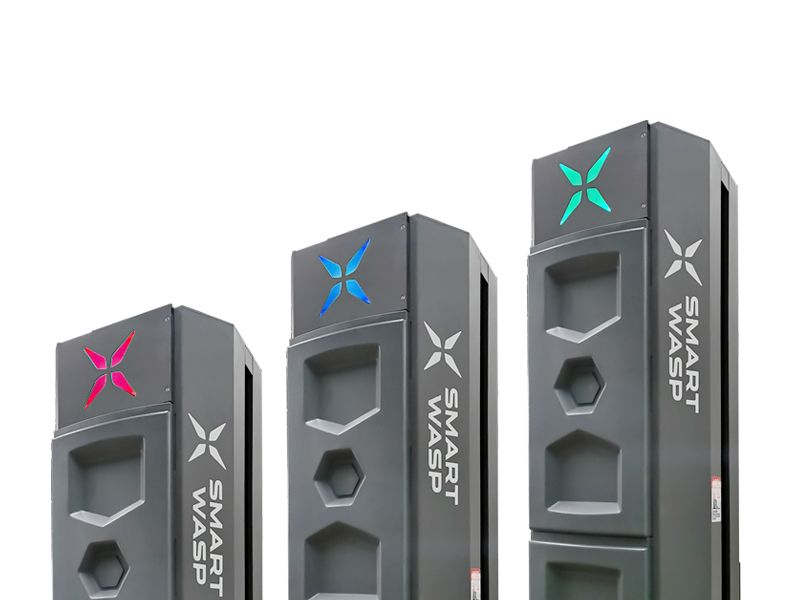

Intelligent operation Guiding system

1. X100s-MT with LED indicator on Turntable Stretch Wrapper Ready for work--Blue color

During working--Green color

Alarm--Red color

2. Touch screen guides the user on how to operate Turntable Stretch Wrapper. If an alarm appears, the touch screen will show you how to solve the problem.

Main Features of Semi Automatic Stretch Pallet Wrapping Machine

1. High efficiency and low electricity-consumption, convenient in operation.

2. The wrapping type and times can be designed on customers’ requirements.

3. Photoelectric sensor test pallet height automatic

4. Auto reset of turn table

5. Pre-stretch ratio: 300%

6. Programmable control and frequency converter is available.

7. PLC control, manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.

 Variable lift speed/ film tension control. Film up/down controls.

8. Pallet stretch wrapping machine soft start and soft stop.

9. Pallet Stretch Wrapper is suitable for Light pallets

10. Automatic cut film function

11. E type turntable ,easy for pallet jack load the pallet on machine , As the load remains stationary, Turntable Wrapping Machines are ideal for wrapping very light, very heavy, high or unstable loads.
