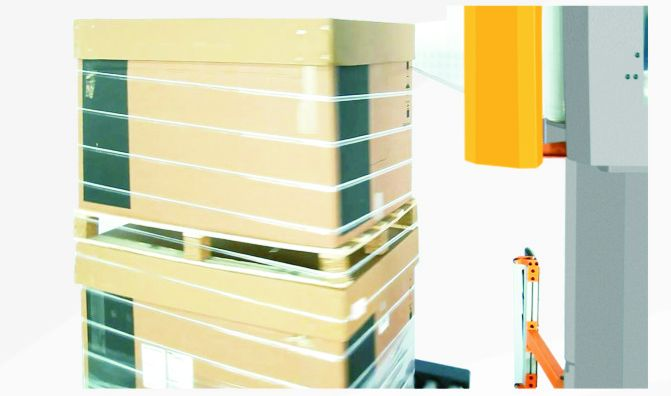

Pallet Grip system
film bottom narrowed to become film rope, film shrink rope grip to pallet & products during wrapping.
1.during transport,no need to worry the products fall down when the pallets get violent vibration
2. if the truckfork damage the film on the bottom of pallet ,the film do not breach .
3. pallet bottom grip and whole journey grip can replace the horizontal strapping machine

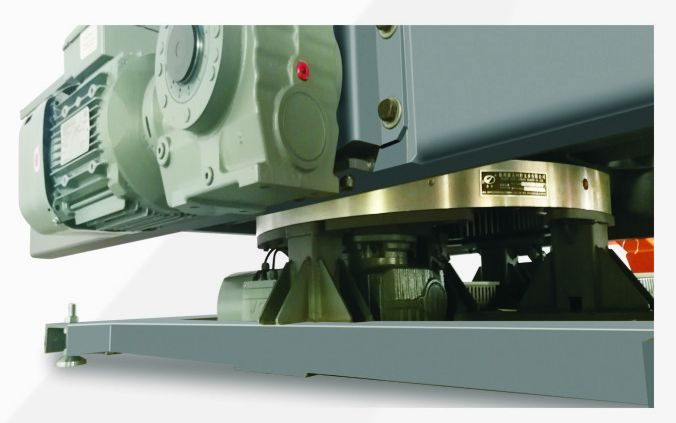

Slewing Bearing Turntable
Smart Wasp online pallet stretch wrapper uses the slewing bearing turntable, max load weight 3000KG, more quiet and lower vibration compared with the chain drive turntable.
SIEMENS Control System
Smart Wasp online pallet stretch wrapper all the electric parts installed inside of the machine.
Do not use an independent control box anymore, in this way, it will be much easier to install the machine.
All the electric parts smart wasps just use top brands like SIEMENS and OMRON.
Good spare parts are very important for the quality of the machine.

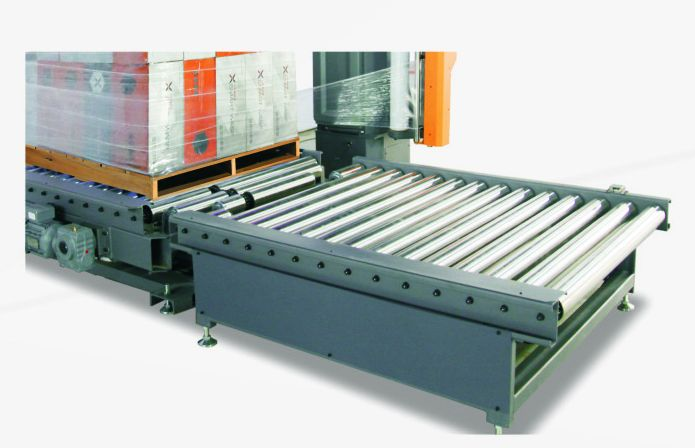

Durable Conveyor.
Smart Wasp pallet shrink wrap machine use 89mm stainless steel roller, the joint conveyor on the wrapper which need be linked to input&output conveyor also use chain drive so that the pallet can be moved from the conveyor to wrapper smoothly

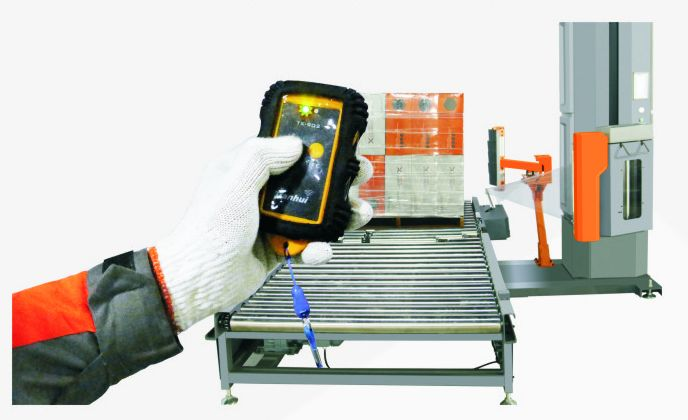

Remote control system with auto cut and clamp film
S300 pallet stretch wrapping machine， the worker just needs to put the pallet on the turntable and press the remote control button, the machine will stretch wrap the pallet automatically, during this time, the worker does not need to get off the forklift truck and operate the machine by hand.
Automatic cut and clamp film system， which let workers no need use their hands to cut film and put the film on pallets anymore, cut &clamp film system will do it automatically.
| Brand | Smart Wasp S300 | Spare Parts | |
| Maximum wrapping speed | 25-30 loads/hour | Inverter | SIEMENS |
| Load Size Diagonal | 1753mm | Position sensor | SICK(Germany) |
| Maximum Wrapping Height | 2400mm | PLC | SIEMENS(Hongkong) |
| Turntable Speed | 0-15RPM(Adjustable) | Travel Switch | OMRON(Japan) |
| Turntable Size | 2000mm | Motor | GPG |
| Turntable Drive | 1.5PH | Relay | OMRON(Japan) |
| Film &Clamp Cut | Automatic (Heat type) | Touch screen | SIEMENS 7inch |
| max load weight | 3000KG | Switch | Schneider |
| Standard Film Width | 500mm | ||
| Constant Film Delivery Force | Standard | ||
| Standard Pre-Stretch | 300% pre-stretch | ||
| Roller Materials | Stainless Steel 201 diameter :89mm | ||
| Film Capacity | 250mm Diametery | Special Process | Introduction |
| Film Delivery System | Power Roller -Stretch Plus | Frame | Steel+ABS |
| Film Rope System | Standard | Printing | Metallic Paint |
| Weighing Scale | Optional | Fall-proof | Inside Safety Belt |
| Machine Weight | 980KG | Cutting | Laser |
| Machine Size | L:2000mm W:1800mm H:3700mm | Turntable Roller | Double Nylon Roller |
| Truntable technology | Slewing Ring | Up&Down Drive | Belt |
| Voltage | 380V/220V/50HZ 1phase | Up&Down Guideway | Double Balance Device |
Benefits of a fully automatic wrapping machine
One of the primary benefits of a fully automatic wrapping machine is its ability to operate continuously with minimal human intervention. Once the machine is programmed and set up, it can run for extended periods without the need for frequent manual adjustments or monitoring. This can help businesses achieve higher production volumes and faster throughput rates, improving overall productivity and profitability.
