Automatic Stretch Film Wrapper Pneumatic X100p

Product Features

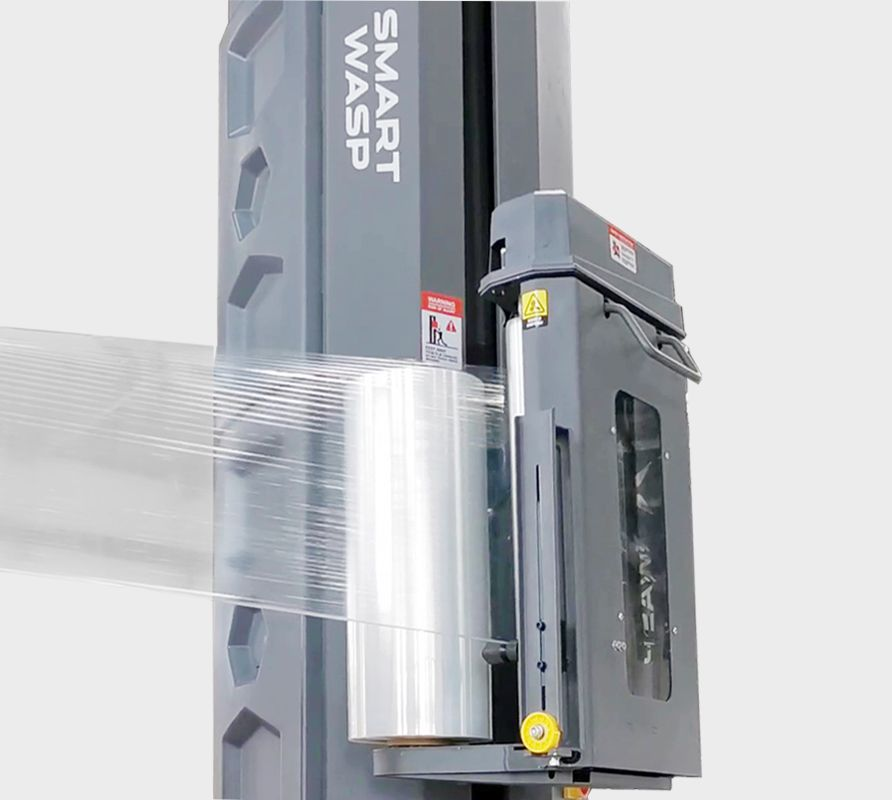

1.Saving Film Consumption

High Pre-Stretch Rate for Film Savings

Achieves up to 380% pre-stretch rate, maximizing film usage.

Ensures fixed-point wrapping with consistent film release.

Offers a quantitative use film system, reducing waste and optimizing material consumption.

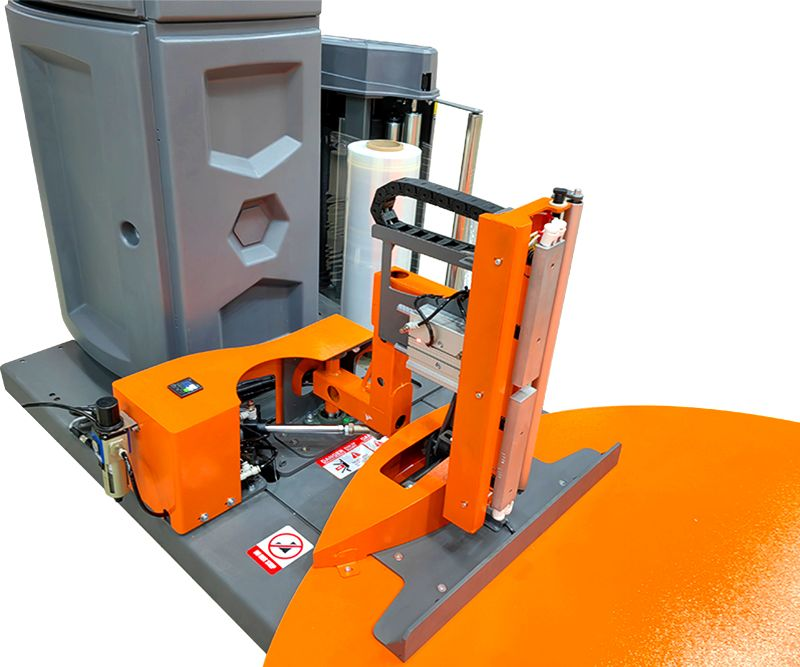

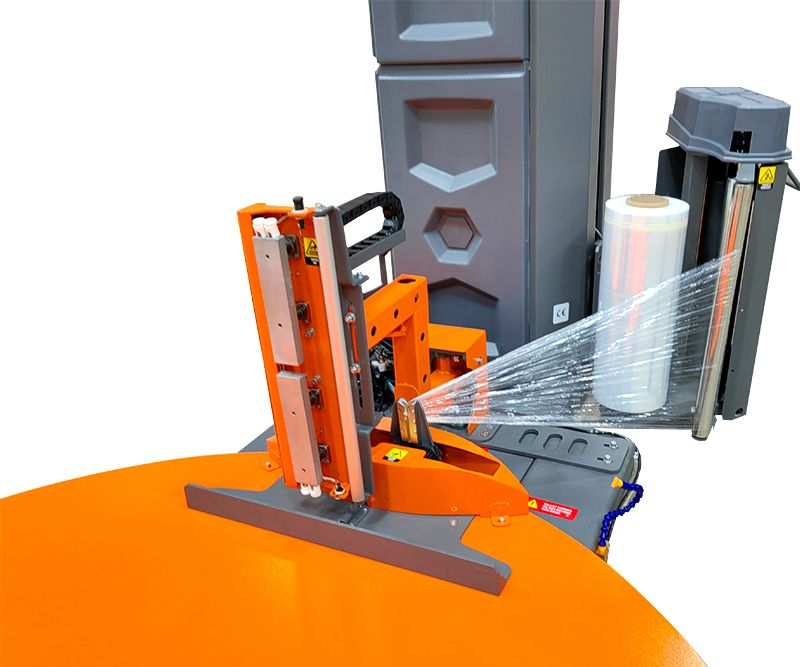

Automatic cut and clamp film

Fully automated cutting and clamping eliminate the need for manual intervention.

Welded-type system ensures no film tails after wrapping, enhancing the final package appearance.

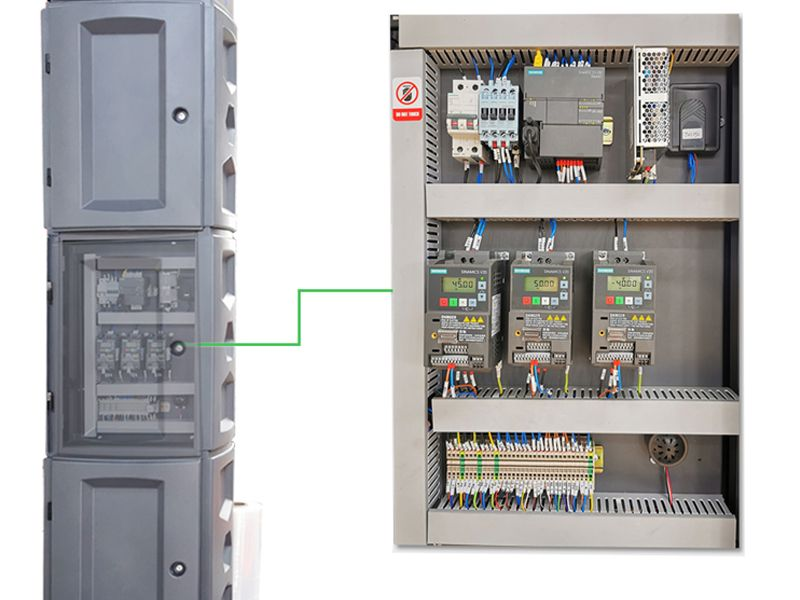

SIEMENS control system

Our machines incorporate premium SIEMENS electrical components for durability and reliability. High-quality electrical systems reduce downtime and simplify troubleshooting, ensuring your operations run smoothly.

IoT-Enabled LCD Touch Operating System

The intuitive IoT touchscreen simplifies operation by allowing users to:

Set turntable speed, up/down speed, and film carriage speed.

Configure six customizable wrapping models for different pallet requirements, minimizing setup time.

Versatility Across Industries

The Automatic Stretch Film Wrapper Pneumatic is versatile, catering to various industries such as:

Food and Beverage

Electronics and Electrical Appliances

Ceramics, Chemicals, and Construction Materials

With customizable settings, our Spinny Pallet Wrappers adapt to diverse material, size, and shape requirements, ensuring consistent results across applications.


Video Display

Technical parameters

ModelSmart Wasp X100pSpare PartsBrand
FeatureMain ProductsInverterSIEMENS
Maximum wrapping speed15-25 loads/hourPhotoeletric sensorSICK(Germany)
Max Wrapping Height & Weight2200mm / 2000KGPLCSIEMENS(Germany)
Turntable Speed 0-13RPM(Adjustable)Travel SwitchOMRON(Japan)
Turntable Size 1650mmMotorGPG(Taiwan)
Turntable Drive0.75PH Chain DriveRelayOMRON(Japan)
Clmap and Cut Film Automatic ReducerGPG
Machine SizeL:2800mm  W:1650mm H:3250mmPosition switchSICK(Germany)
Machine Weight 800KGTouch screenX-LINE/SIEMENS
Standard Pre-Stretch300% pre-stretchContactorSIEMENS
Film Capacity250mm Diameter

Standard Film Width500mm





Film Delivery SystemPower Pre -Stretch Special ProcessIntroduction
Packing ForceChangeableFrameSteel+ABS
Intelligent-SensorStandardPrintingMetallic Paint
Rope Grip SystemOptionalFall-proof Inside Safety Belt
Safety DeviceCE standardCuttingLaser
Alarm SystemHaveTurntable Roller Double Nylon Roller
Top PressureMotor Drive/600-2200mm press heightUp&Down Drive Belt
Ramp:optionalUp&Down GuidewayDouble Balance Device


×
