Products

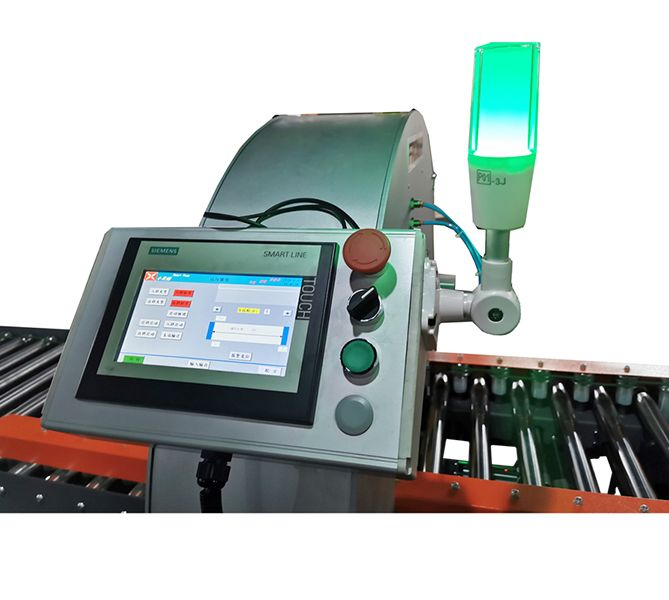

Intelligent Touch Operating System
Intuitive, easy to understand,has nothing to do with language and skills.

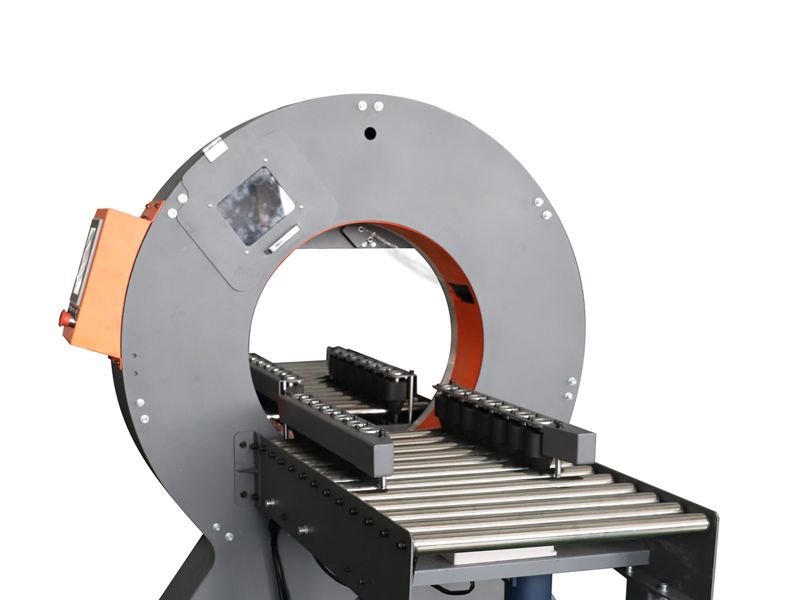

Aluminum Ring System with Double Film Carriage
Aluminum Ring with lightweight high speed, and machine with 2 film carriage so the wrapping speed more faster. 150mm film width and thin ring thinkness ,the minmum length can reach 500mm

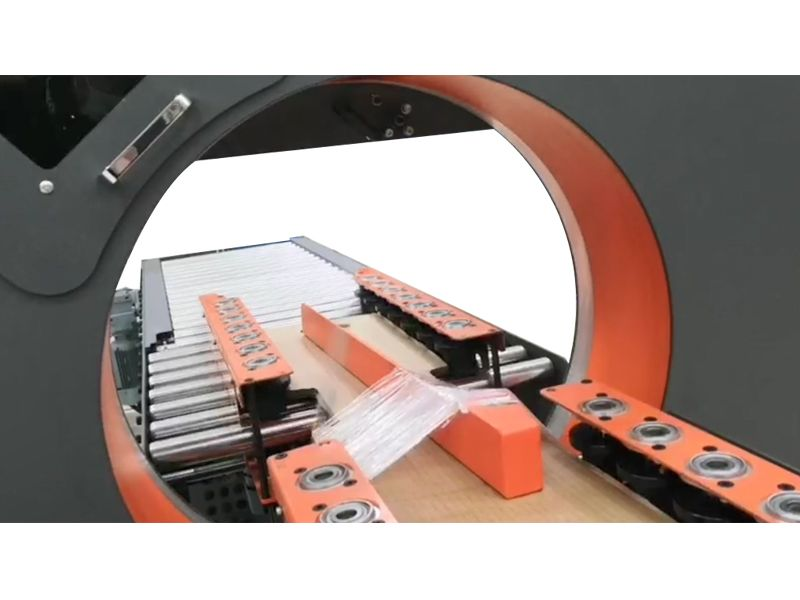

Automatic cutting and clamping film
Fully automatic cutting and clamping film, it's more convenient for operator to use the machine, and improves working efficiency.

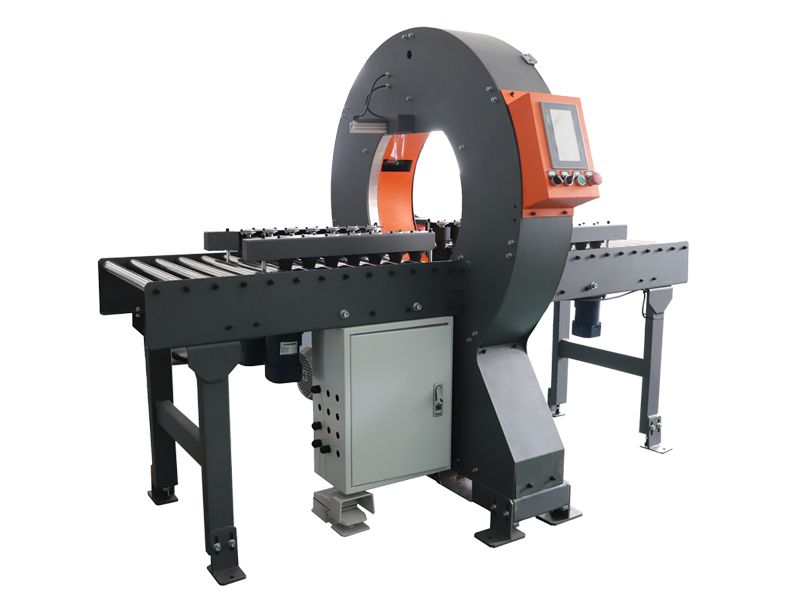

Durable Conveyor
Use roller conveyor, avoid the problem of jam caused by the way of traditional transition in the process of connecting and conveying the front and rear conveyor line.
| Model | S600 | Special requirements | Introduction |
| maximum wrapping size | 400mm/600mm(Diameter) | Input and output conveyor (OPTIONAL) | Roller conveyor/belt conveyor |
| Ring Diameter | 600mm/800mm | ||
| Minimum products length | 500mm | ||
| maximum loading weight | 200KG | ||
| Output height | 500mm-1000mm | ||
| Motor Drive | 0.75Kw | ||
| Put Film & cut film | Automatic(Manual optional) | ||
| Film | LLDPE | ||
| Film width | 150mm | Conveyor width | 600mm |
| maximum film diameter | 200mm | Max load | 50KG/M |
| Conveyor type | PLC | ||
| Safety door | Have | ||
| Machine Weight | 400KG | ||
| Machine Size | L:4718mm W:1503mm H:1790mm | ||
| Language | According to customer requirements | ||
| Voltage | 380V/220V/110V/50HZ /60HZ 1P/3P |
