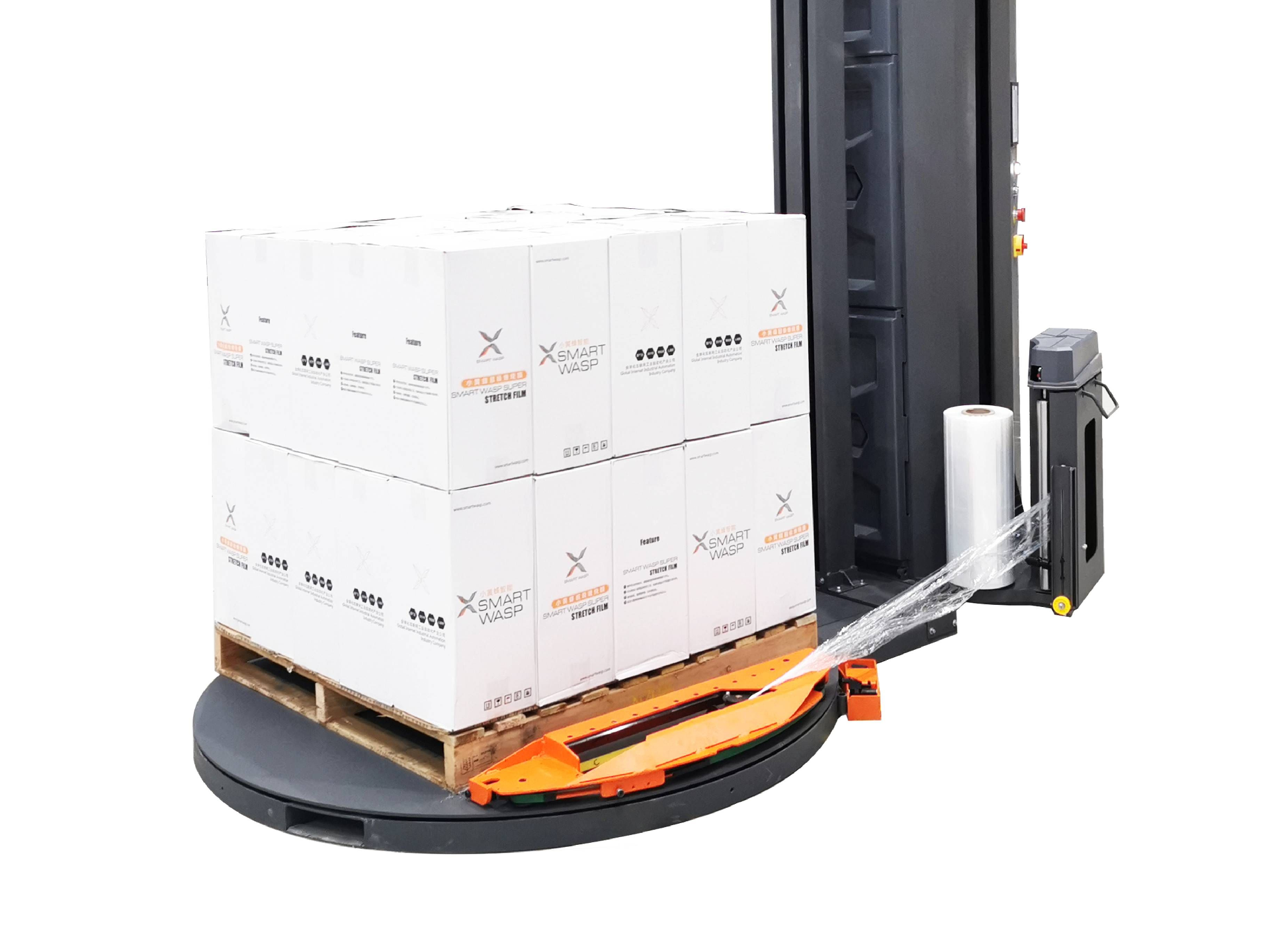

Pneumatic Automatic Pallet Wrapping Machine X300

Product Features

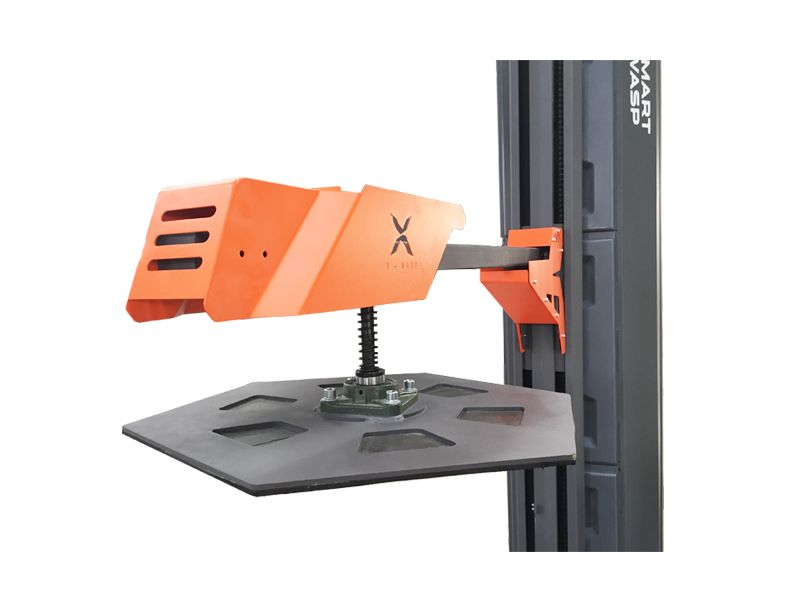

Advanced Top Pressure Device

The electric pressurizing system ensures stability during the wrapping process by preventing goods from scattering or displacing. With an adjustable pressurizing stroke ranging from 500mm to 2000mm, it doubles the range compared to traditional pneumatic systems, making it suitable for a broader range of applications.

AAutomatic Film Cutting and Clamping

The X300 model includes an innovative automatic cut and clamp film system. This feature eliminates the need for manual film handling, saving time and improving worker safety.

SIEMENS Control System

If you want to buy a good and durable machine, the eletrical parts will be very important. If one eletric use a bad brand, it's a big risk for the customer, becuase one part does not work, the whole machine will stop working. The machine’s electrical components are built using high-quality SIEMENS parts to ensure durability and reliability. This minimizes the risk of malfunctions and simplifies troubleshooting, providing a dependable wrapping solution for long-term use.

IoT-Enabled LCD Touch Operating System

The SMART WASP pallet wrapping machine features an intuitive LCD touch screen. Key benefits include:

Direct control of turntable speed, up/down speed, and film carriage speed.

Six pre-set wrapping models to accommodate different pallet requirements, allowing users to switch settings effortlessly.

Remote Control System

A dedicated remote control simplifies machine operation, enabling users to start or pause wrapping tasks with ease. Each remote is uniquely paired to a single machine for seamless control.


Video Display

Technical parameters

ModelSmart Wasp X300Spare PartsBrand
FeatureMain ProductsInverterSIEMENS
Maximum wrapping speed15-25 loads/hourPhotoeletric sensorSICK(Germany)
Max Wrapping Height & Weight2200mm / 2000KGPLCSIEMENS(Germany)
Turntable Speed 0-13RPM(Adjustable)Travel SwitchOMRON(Japan)
Turntable Size 1650mmMotorGPG(Taiwan)
Turntable Drive0.75PH Chain DriveRelayOMRON(Japan)
Clmap and Cut Film Automatic ReducerGPG
Machine SizeL:2800mm  W:1650mm H:3250mmPosition switchSICK(Germany)
Machine Weight 800KGTouch screenX-LINE/SIEMENS
Standard Pre-Stretch300% pre-stretchContactorSIEMENS
Film Capacity250mm Diameter

Standard Film Width500mm





Film Delivery SystemPower Pre -Stretch Special ProcessIntroduction
Packing ForceChangeableFrameSteel+ABS
Intelligent-SensorStandardPrintingMetallic Paint
Rope Grip SystemOptionalFall-proof Inside Safety Belt
Safety DeviceCE standardCuttingLaser
Alarm SystemHaveTurntable Roller Double Nylon Roller
Top PressureMotor Drive/600-2200mm press heightUp&Down Drive Belt
Ramp:optionalUp&Down GuidewayDouble Balance Device


×
